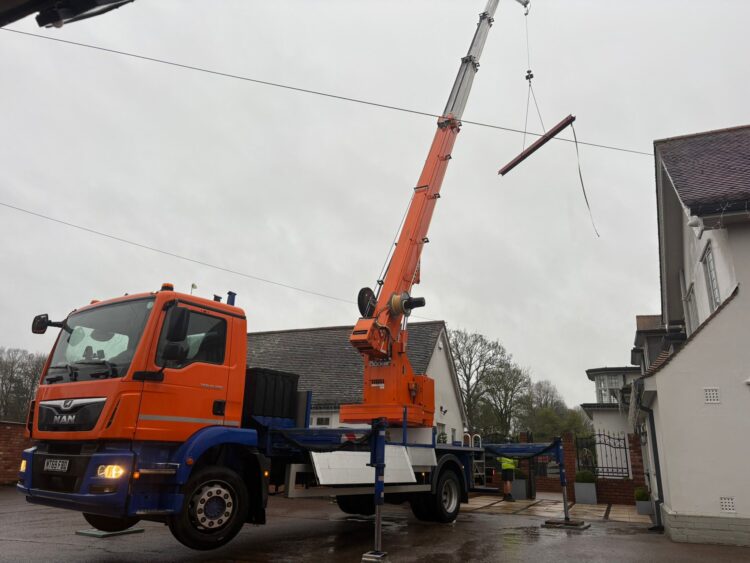

Bocker Truck Crane AK 42/4000
The compact truck crane lifts a maximum load of 4 t
The AK 42/4000 is the power pack on a 15 t truck. Thanks to is 2 t winch this crane easily lifts heavy loads with and underlines its strengths by surpassing working ranges. The compact truck crane lifts a maximum load of 4 t and reaches a maximum radius of 22 m with a load of 1000 kg. This performance data shows that the AK 42/4000 is the perfect crane for ambitious roofers, carpenters or even solar and metal manufacturers.
This versatile crane can be converted into a fully-fledged work platform in short time thanks to its Easy-Lock-System. The particular strong aluminium boom always guarantees precise lowering of the load.
Specification
General
| Permissible gross vehicle weight (t) | 16 / 18 |
|---|---|
| Max. payload (kg) | 2.000 (optional 4.000) |
| Max. extension length (m) | 42,0 |
| Working height up to boom (m) | 33,7 |
| Boom extendable (m) | 4,6 / 6,8 / 9,0 |
| Boom payload (kg) | 2.000 / 1.500 / 800 |
| Main mast angle (degrees) | 87 |
| Boom angle (degrees) | 157 |
| Pivoting range (degrees) | +/- 310 |
| Hook speed (m/min) | 50 |

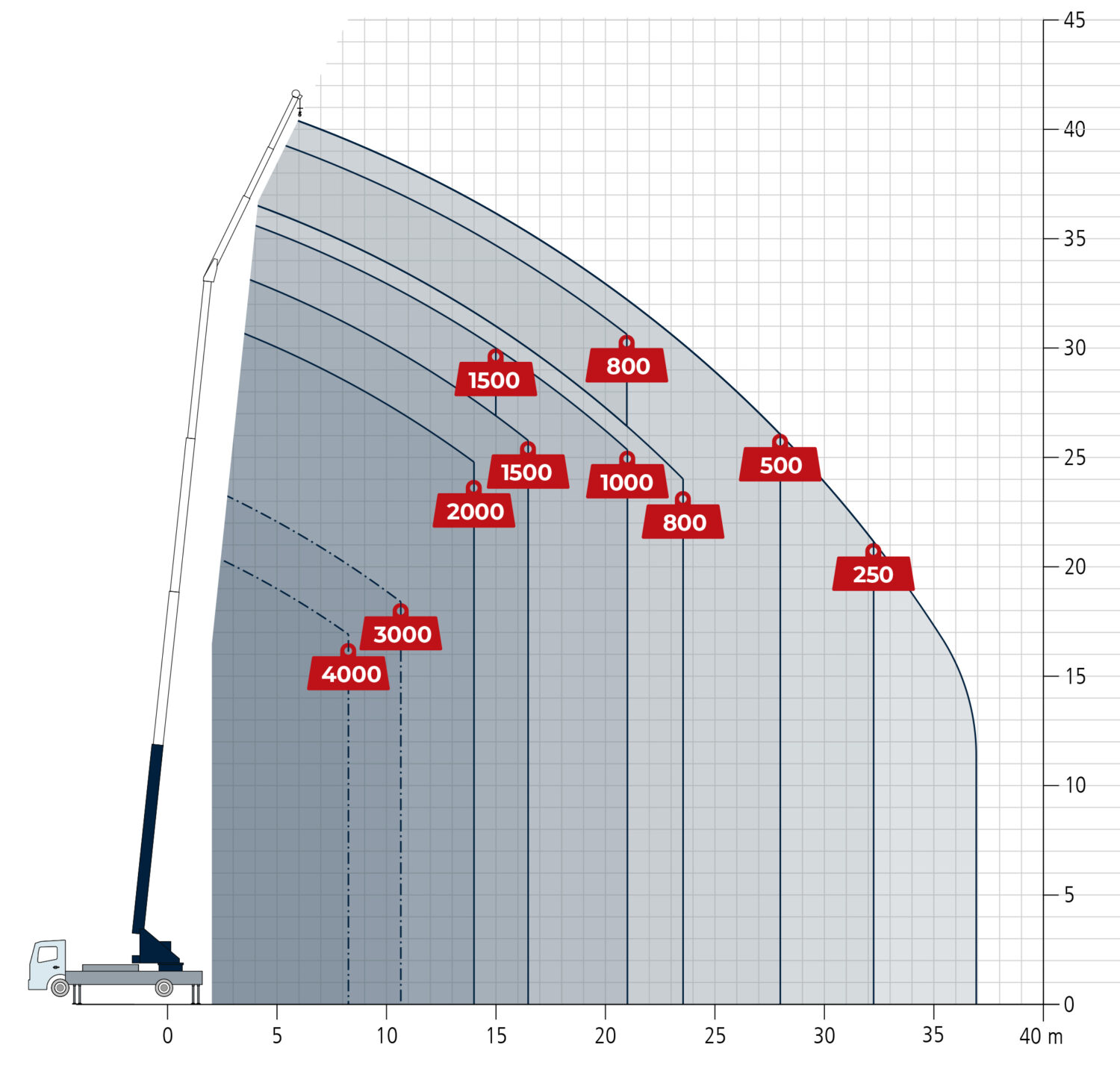

| Range for crane operation at 250 kg (m) | 35,0 / 32,3 |
| Range for crane operation at 500 kg (m) | 30,0 / 28,0 |
| Range for crane operation at 1 t (m) | 22,0 / 21,0 |
| Range for crane operation at 2 t (m) | 14,0 / 14,0 |
| Range for crane operation at 4 t (m) | 8,2 / 8,2 |
| Range for crane operation at 6 t (m) | |
| Range for crane operation at 12 t (m) | |
| Range for platform operation with rotatable basket (m) | 30,2 / 27,5 at 250 kg 33,0 / 30,0 at 100 kg |
| Range for platform operation with hooped basket (m) | 30,2 / 27,5 at 250 kg 33,0 / 30,0 at 100 kg |
| Working height with rotatable basket max. (m) | 38,1 |
| Working height with hooped basket max. (m) | 42,2 |
